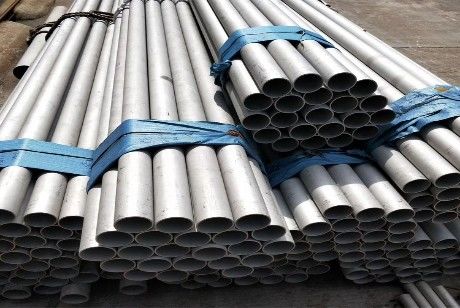

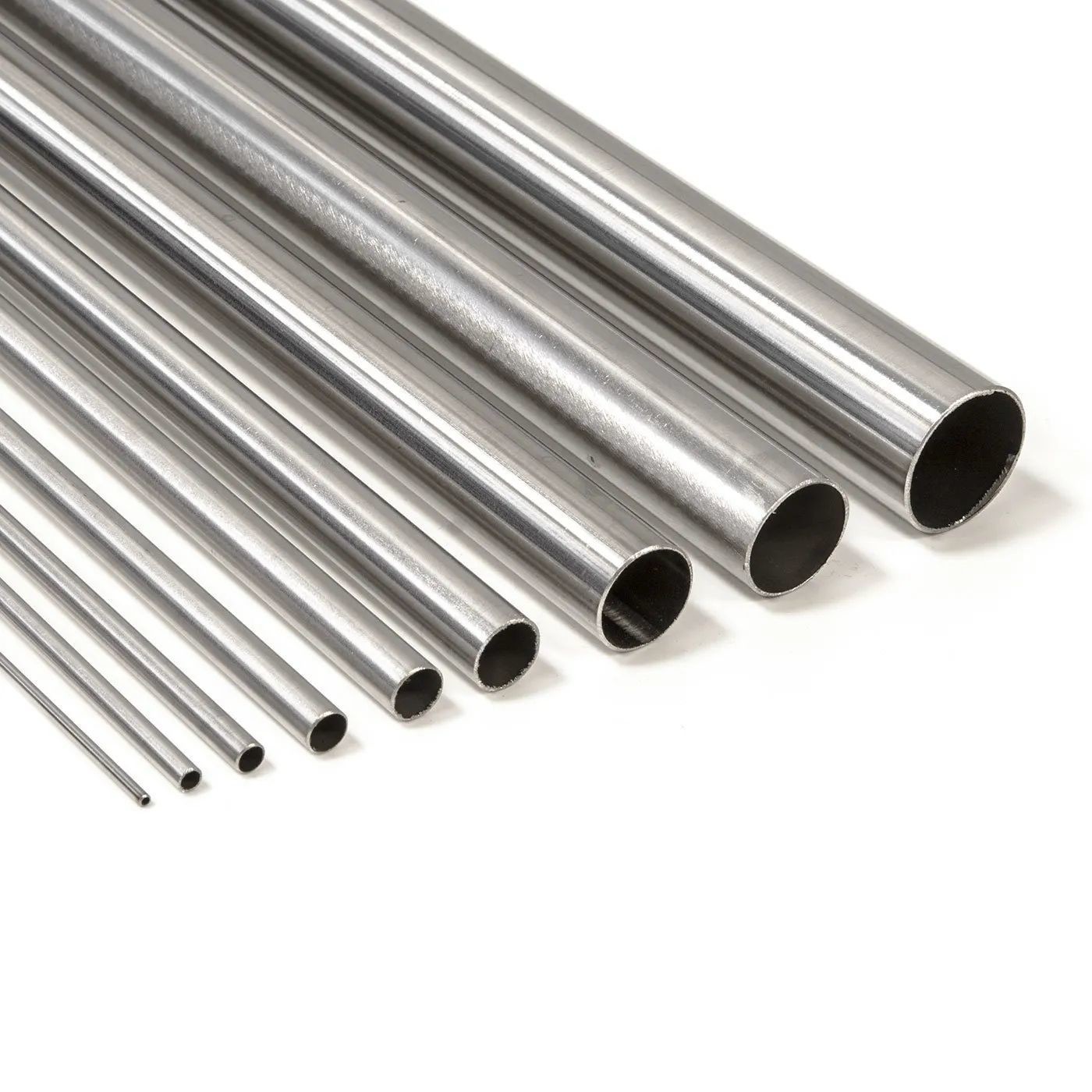

316 Sanitary Stainless Steel Tubing 40mm Welded Seamless
| Place of Origin | China |
|---|---|
| Brand Name | Hongyiyuan |
| Certification | ISO |
| Model Number | 321, 316, 316L, 316Ti, 316F, 316LTi, 309S, 310, 310S, 904L |
| Minimum Order Quantity | 1 Ton |
| Price | Negotiate |
| Packaging Details | Standard Seaworthy Package |
| Delivery Time | 7-15 work days |
| Payment Terms | T/T |
| Supply Ability | 1000tons/months |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Stainless Steel Pipe | Standard | ASTM GB AISI JIS EN |
|---|---|---|---|
| Grade | 316 | Thickness | 0.5-50mm |
| Packing | Standard Package | Price Term | EXW,FOB,CIF,FCA |
| Processing Service | Punching, Cutting,Welding | Application | Construction,Decoration,Industry,machine Building,Exhaust Pipe |
| Delivery Time | 7-15 Days After Paid | MQO | 1 Ton |
| Payment Terms | 30%T/T,L/C | ||
| Highlight | 316 sanitary stainless steel tubing,sanitary stainless steel tubing 40mm,Seamless sanitary stainless pipe |
||
Product Description
Product Description
Stainless steel 316/316L Grade :
Alloy 316/316L is molybdenum-bearing austenitic stainless steel. The higher nickel and molybdenum content in this grade allows it to demonstrate better overall corrosion resistant properties than 304, especially with regard to pitting and crevice corrosion in chloride environments. In addition, Alloy 316/ 316L provides excellent elevated temperature tensile, creep and stress-rupture strengths, as well as outstanding formability and weldability. 316L is the lower carbon version of 316 and is immune from sensitization; therefore, it is very frequently used in heavy gauge welded components.
Chemical Composition
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0 .15 | ≤0 .75 | 5. 5-7. 5 | ≤0.06 | ≤ 0.03 | 3.5 -5.5 | 16 .0 -18.0 | - |
| 202 | ≤0 .15 | ≤l.0 | 7.5-10.0 | ≤0.06 | ≤ 0.03 | 4.0-6.0 | 17.0-19.0 | - |
| 301 | ≤0 .15 | ≤l.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 302 | ≤0 .15 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 8.0-10.0 | 17.0-19.0 | - |
| 304 | ≤0 .0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-10.5 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | ≤ 0.03 | 19.0-22.0 | 24.0-26.0 | |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0- |
| 316L | ≤0 .03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0 - 15.0 | 16 .0 -1 8.0 | 2.0 - |
| 321 | ≤ 0 .08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0 - 13 .0 | 17.0 -1 9.0 | - |
| 630 | ≤ 0 .07 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | 3.0-5.0 | 15.5-17.5 | - |
| 631 | ≤0.09 | ≤1.0 | ≤1.0 | ≤0.030 | ≤0.035 | 6.50-7.75 | 16.0-18.0 | - |
| 904L | ≤ 2 .0 | ≤0.045 | ≤1.0 | ≤0.035 | - | 23.0·28.0 | 19.0-23.0 | 4.0-5.0 |
| 2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.030 | ≤0.02 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
| 2507 | ≤0.03 | ≤0.8 | ≤1.2 | ≤0.035 | ≤0.02 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
| 2520 | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | ≤ 0.03 | 0.19 -0. 22 | 0. 24 -0 . 26 | - |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | - | 11.5-13.5 | - |
| 430 | ≤0.1 2 | ≤0.75 | ≤1.0 | ≤ 0.040 | ≤ 0.03 | ≤0.60 | 16.0 -18.0 | - |
Surface Description
|
Surface |
Definition |
Application |
|
No.1 |
The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. |
Chemical tank, pipe etc. |
|
No.3 |
Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. |
Kitchen utensils, Building construction etc. |
|
No.4 |
Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. |
Kitchen utensils, Building construction, Medical equipment etc. |
|
2B |
Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. |
Medical equipment, Food industry, Construction material, Kitchen utensils etc. |
|
BA (No.6) |
Those processed with bright heat treatment after cold rolling. |
Kitchen utensils, Electric equipment, Building construction etc. |
|
Mirror (No.8) |
Shinning like a mirror |
Building construction, decoration etc. |
|
Hairline |
Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. |
Building Construction etc. |
Factory product
Our service is the basis of cooperation, and the recognition of customers determines the stability of our long-term strategic partnership.
Product Application
FAQ
Q: What's your advantage?
A: We have a large number of professional technical personnel, more competitive prices than other steel companies and the best after-sales service.
Q: Do you offer after-sales services?
A: Certainly. If you have any questions, please feel free to contact us. We will do our best to solve the problems and satisfy you.
Q: How about the delivery time?
A: Within 4-35 days after we confirm your orders. Depending on different products.
Q: How do you control quality?
A: All products are produced in strict accordance with relevant product standards, and the products are tested by relevant instruments and experimental equipment during the production process.
Q: Does the product have quality inspection before loading?
A: Of course, all our products have undergone strict quality inspection before packing. We accept customer’s inspection before loading.
