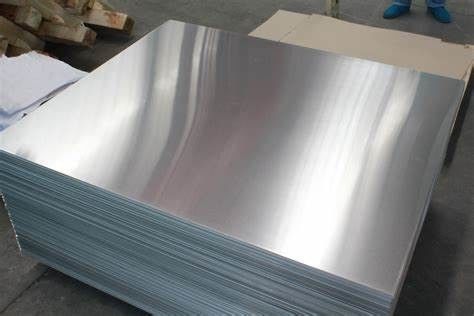

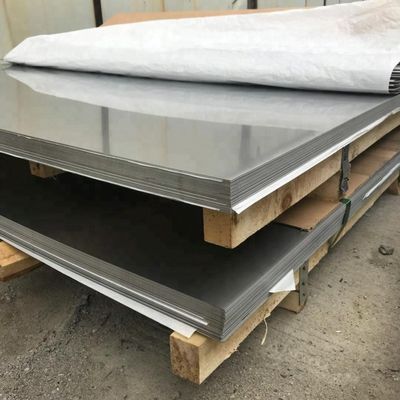

AISI ASTM SUS 201 304 321 316L 430 Stainless Steel Plate For Building
| Place of Origin | China |
|---|---|
| Brand Name | Hongyiyuan |
| Certification | ISO |
| Model Number | 321, 316, 316L, 316Ti, 316F, 316LTi, 309S, 310, 310S, 904L |
| Minimum Order Quantity | 1 Ton |
| Price | Negotiate |
| Packaging Details | Standard Seaworthy Package |
| Delivery Time | 7-15 work days |
| Payment Terms | T/T/LC |
| Supply Ability | 1000tons/months |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Stainless Steel Plate | Material | Stainless Steel |
|---|---|---|---|
| Grade | 201 304 321 316L 430 | Shape | Plate |
| Standard | ASTM GB AISI JIS EN | Size | Customized Size |
| Thickness | 1.0mm Or Customized | Packing | Standard Seaworthy Package |
| Processing Service | Punching, Cutting | Technique | Hot Rolled / Cold Rolled |
| Highlight | 316L 430 stainless steel plate,321 430 stainless steel plate,304 430 stainless plate |
||
Product Description
PRODUCT DESCRIPTION
Stainless steel sheet is typically sold in the annealed condition and is available in most grades. Our stainless steel sheets come in both a standard 2B finish and various polished finishes. Polished surfaces range from the standard #4 to a mirrored finish #8 and are usually covered with a removable vinyl coating. Our standard sheet sizes include 4’ x 8’, 4’ x 10’, and 5’ x 10’, but customized sizes are also available. Stainless steel plate is sold in the HRAP (Hot Rolled Annealed and Pickled) condition and finishes.
| Product | Stainless Steel Plate |
| Width | 500mm/1000mm/1219mm/1250mm/1500mm/1800mm/2000mm/2200mm/2500mm/3000mm/3500mm, or as required |
| Thickness | 0.4/0.5/0.6/0.7/0.8/0.9/1.0/1.2/1.5/2.0/2.5/3.0/4.0/5.0/6.0/8.0/10.0/12.0/14.0/16.0—250mm, or as required |
| Surface | N0.1, N0.4, 2D, 2B, HL, BA, 6K, 8K, Mirror,etc |
| Material |
201, 202 301, 302, 303, 303F, 303Cu, 304, 304L, 304H, 304F, 314 321, 316, 316L, 316Ti, 316F, 316LTi, 309S, 310, 310S, 904L 409, 410, 416, 420, 430, 430F, 431, 436, 439, 441 317, 317L, 347H, 329, 630, 631, 17-4PH 2205, 2507, 2304, HASTELLOYC-276, C-22, C-2000, MONEL400, 254SMO, 253MA, Inconel1600, Inconel1625, Incoloy800, Incoloy800H, Incoloy825, Incoloy800HT GH3030, GH3039, GH2747 |
| Standards | AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc |
| Technique | Hot Rolled/Cold Rolled |
| Length | 500mm/1000mm/2000mm/2438mm/2500mm/3000mm/6000mm/8000mm—13000mm, or as required |
| Color | Standard RAL color: Red, Blue, White, Grey, Brick, etc. |
| Stock Dimension |
Cold Rolled: 0.4-6.0mm*1000*2000mm/ 1220*2440mm/ 1250*2500mm/ 1500*3000mm, or as your request Hot Rolled: 3.0-16.0mm*1250*2500mm/ 1500*3000mm/ 1500*6000mm/ 1800*6000mm/ 2000*6000mm, or as your request Thick Sheet: 6.0mm-80mm*width*length, as your request Mirror: 0.4-1.5mm*1000*2000mm/ 1219*2438mm and other customize size workable Hairline: 0.4-1.5mm*1000*2000mm/ 1219*2438mm and other customize size workable Color Coating: 0.4-1.5mm*1000*2000mm/ 1219*2438mm and other customize size workable Sandblasting: 0.4-1.5mm*1000*2000mm/ 1219*2438mm and other customize size workable |
| Service | OEM, Customized processing service, Customized fabrication by drawings |
| Processing Type | Cutting, Bending, Stamping, Welding, CNC machining |
| Cutting Type | Laser cutting; Water-jet cutting; Flame cutting |
| Protection |
1. Inter paper available 2. PVC protecting film available |
| Chemical Properties of Frequently-used Stainless Steel Material Grade | |||||||||||
| UNS | ASTM | EN | JIS | C% | Mn% | P% | S% | Si% | Cr% | Ni% | Mo% |
| S30100 | 301 | 1.4319 | SUS301 | ≤0.15 | ≤2.00 | ≤0.045 | ≤0.03 | ≤1.00 | 16.0-18.0 | 6.0-8.0 | - |
| S30400 | 304 | 1.4301 | SUS304 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 18.0-20.0 | 8.0-10.5 | - |
| S30403 | 304L | 1.4306 | SUS304L | ≤0.03 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 18.0-20.0 | 8.0-12.0 | - |
| S30908 | 309S | 1.4833 | SUS309S | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 22.0-24.0 | 12.0-15.0 | - |
| S31008 | 310S | 1.4845 | SUS310S | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤1.50 | 24.0-26.0 | 19.0-22.0 | - |
| S31600 | 316 | 1.4401 | SUS316 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| S31603 | 316L | 1.4404 | SUS316L | ≤0.03 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| S31703 | 317L | 1.4438 | SUS317L | ≤0.03 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 18.0-20.0 | 11.0-15.0 | 3.0-4.0 |
| S32100 | 321 | 1.4541 | SUS321 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 17.0-19.0 | 9.0-12.0 | - |
| S34700 | 347 | 1.4550 | SUS347 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 17.0-19.0 | 9.0-13.0 | - |
| S32750 | SAD2507 | 1.4410 | ≤0.03 | ≤1.2 | ≤0.035 | ≤0.02 | ≤0.80 | 24.0-26.0 | 6.0-8.0 | 3.0-5.0 | |
| S31803 | SAF2205 | 1.4462 | ≤0.03 | ≤2.0 | ≤0.03 | ≤0.02 | ≤1.00 | 21.0-23.0 | 4.0-6.5 | 2.5-3.5 | |
| N08904 | 904L | 1.4539 | ≤0.0.3 | ≤2.0 | ≤0.035 | ≤0.03 | ≤1.00 | 18.0-20.0 | 23.0-25.0 | 3.0-4.0 | |
Factory product
Our service is the basis of cooperation, and the recognition of customers determines the stability of our long-term strategic partnership.
Quality Detection
In our company, the prime product can only be packaged, and shipped after passed four inspections.If any link does not meet the customer's requirements, we will be notified customers immediately and replaced with other stocks for processing.
Finished product display
At present, we can provide cutting, slitting, laser cutting sheets, laser cutting tubes and profiles, sawing cutting rods and tubes, bending, welding, stamping, CNC machining, the smallest laser drilling diameter can be 0.15mm in diameter, The largest machinable size is 1020mm diameter, the maximum error of the laser is only 0.05mm, the maximum tolerance of the sawing machine is less than 0.15mm, and the length error is 0.05-0.1mm.Believe that our profession will be able to get your greatest recognition and support.
FAQ
Q:Why do you choose us?
A:Our company has been in the steel business for more than thirty years.We have rich international experience,professional,we can provide our customers with a variety of high quality steel products.
Q:Can we provide OEM/ODM service?
A:Yes.Please feel free to contact us for further details.
Q:What are your terms of payment?
A:One is to telegraphic transfer 30% of the deposit before production the remaining 70% to the copy of the bill of lading;The other is an irrevocable 100% sight L/C
Q:Can we visit your factory?
A:A warm welcome.Once we have your itinerary we will arrange for a professional sales team to follow up your case.
Q:Can you provide samples?
A:Yes,the sample of general size is free of charge,but the buyer needs to pay the shipping fee.
