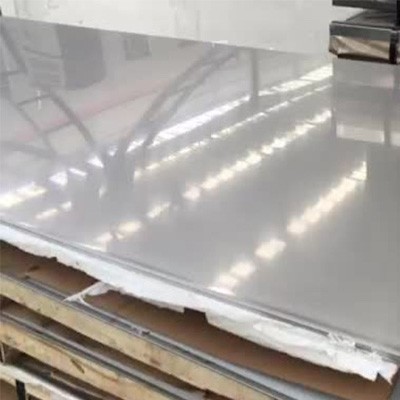

Brushed Stainless Steel Metal Plates 1220mm X 2440mm ASTM SUS 316
| Place of Origin | China |
|---|---|
| Brand Name | Hongyiyuan |
| Certification | ISO |
| Model Number | 321, 316, 316L, 316Ti, 316F, 316LTi, 309S, 310, 310S, 904L |
| Minimum Order Quantity | 1 Ton |
| Price | Negotiate |
| Packaging Details | Standard Seaworthy Package |
| Delivery Time | 7-15 work days |
| Payment Terms | T/T/LC |
| Supply Ability | 1000tons/months |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Stainless Steel Plate | Material | Stainless Steel |
|---|---|---|---|
| Standard | ASTM GB AISI JIS | Size | Customized Size |
| Thickness | 1.0mm Or Customized | Packing | Standard Seaworthy Package |
| Processing Service | Punching, Cutting | Technique | Hot Rolled / Cold Rolled |
| Application | Industry | ||
| Highlight | 1220mm X 2440mm Brushed Stainless Steel Metal Plates,1220mm X 2440mm SUS 316 Stainless Steel Metal Plates,1220mm X 2440mm SUS 316 Metal Plates |
||
Product Description
PRODUCT DESCRIPTION
316 stainless steel, 18cr-12ni-2.5 Mo due to the addition of Mo, so its corrosion resistance, atmospheric corrosion resistance and high temperature strength is particularly good, can be used in harsh conditions;
Excellent work hardening (non-magnetic).
Equipment for the production of seawater, chemicals, dyes, papermaking, oxalic acid and fertilizers;
Photography, food industry, coastal facilities, ropes, CD rods, bolts, nuts.
Chemical composition of 316 stainless steel: C≤0.08, Si≤1.00, Mn≤2.00, P≤0.045, S≤0.03, Ni:10.0-14.0, Cr:16.0-18.5, Mo:2.0-3.0.
Mechanical properties of 316 stainless steel, tensile strength (Mpa) 620 MIN, yield strength (Mpa) 310 MIN, elongation (%) 30 MIN, area reduction (%) 40 MIN, density of 316 stainless steel 8.03g /cm3, austenitic stainless steel is generally used this value.
| Product | 316 Stainless Steel Plate |
| Width | 500mm/1000mm/1219mm/1250mm/1500mm/1800mm/2000mm/2200mm/2500mm/3000mm/3500mm, or as required |
| Thickness | 0.4/0.5/0.6/0.7/0.8/0.9/1.0/1.2/1.5/2.0/2.5/3.0/4.0/5.0/6.0/8.0/10.0/12.0/14.0/16.0—250mm, or as required |
| Surface | N0.1, N0.4, 2D, 2B, HL, BA, 6K, 8K, Mirror,etc |
| Material |
201, 202 301, 302, 303, 303F, 303Cu, 304, 304L, 304H, 304F, 314 321, 316, 316L, 316Ti, 316F, 316LTi, 309S, 310, 310S, 904L 409, 410, 416, 420, 430, 430F, 431, 436, 439, 441 317, 317L, 347H, 329, 630, 631, 17-4PH 2205, 2507, 2304, HASTELLOYC-276, C-22, C-2000, MONEL400, 254SMO, 253MA, Inconel1600, Inconel1625, Incoloy800, Incoloy800H, Incoloy825, Incoloy800HT GH3030, GH3039, GH2747 |
| Standards | AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc |
| Technique | Hot Rolled/Cold Rolled |
| Length | 500mm/1000mm/2000mm/2438mm/2500mm/3000mm/6000mm/8000mm—13000mm, or as required |
| Color | Standard RAL color: Red, Blue, White, Grey, Brick, etc. |
| Stock Dimension |
Cold Rolled: 0.4-6.0mm*1000*2000mm/ 1220*2440mm/ 1250*2500mm/ 1500*3000mm, or as your request Hot Rolled: 3.0-16.0mm*1250*2500mm/ 1500*3000mm/ 1500*6000mm/ 1800*6000mm/ 2000*6000mm, or as your request Thick Sheet: 6.0mm-80mm*width*length, as your request Mirror: 0.4-1.5mm*1000*2000mm/ 1219*2438mm and other customize size workable Hairline: 0.4-1.5mm*1000*2000mm/ 1219*2438mm and other customize size workable Color Coating: 0.4-1.5mm*1000*2000mm/ 1219*2438mm and other customize size workable Sandblasting: 0.4-1.5mm*1000*2000mm/ 1219*2438mm and other customize size workable |
| Service | OEM, Customized processing service, Customized fabrication by drawings |
| Processing Type | Cutting, Bending, Stamping, Welding, CNC machining |
| Cutting Type | Laser cutting; Water-jet cutting; Flame cutting |
| Protection |
1. Inter paper available 2. PVC protecting film available |
Factory product
Our service is the basis of cooperation, and the recognition of customers determines the stability of our long-term strategic partnership.
Quality Detection
In our company, the prime product can only be packaged, and shipped after passed four inspections.If any link does not meet the customer's requirements, we will be notified customers immediately and replaced with other stocks for processing.
Finished product display
At present, we can provide cutting, slitting, laser cutting sheets, laser cutting tubes and profiles, sawing cutting rods and tubes, bending, welding, stamping, CNC machining, the smallest laser drilling diameter can be 0.15mm in diameter, The largest machinable size is 1020mm diameter, the maximum error of the laser is only 0.05mm, the maximum tolerance of the sawing machine is less than 0.15mm, and the length error is 0.05-0.1mm.Believe that our profession will be able to get your greatest recognition and support.
FAQ
Q: Are you trading company or manufacturer ?
A: We are professional manufacturer for steel pipe, and our company also is a very professional a trade company for steel
products.we can also provide a wide range of steel products.
Q: Will you delivery the goods on time?
A: Yes,we promise to provide best quality products and delivery on time .Honesty is our company's tenet.
Q: Do you provide samples ? is it free or extra ?
A: The sample could can provide for customer with free,but the courier freight will be covered by customer account.
Q: Do you accept the third party inspection?
A: Yes absolutely we accept.
Q: How could you guarantee your products?
A: Each piece of products is manufactured by certified workshops, inspected by Linxu piece by piece according to national QA/QC standard. We also could issue the warranty to customer to guarantee the quality.
Q:Can you provide samples?
A:Yes,the sample of general size is free of charge,but the buyer needs to pay the shipping fee.
